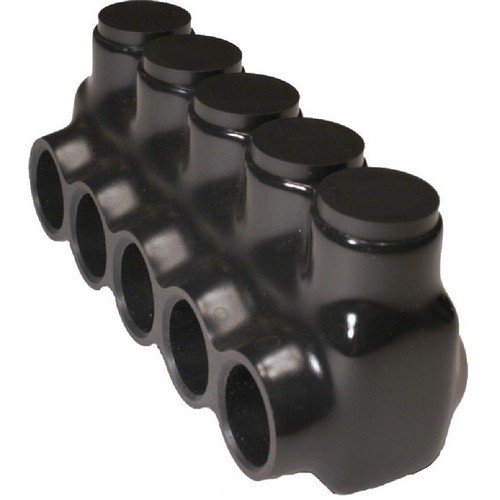

Black Insulated Multi-Cable Connector - Single Side Entry

• Wires Enter the Same Side of the Connector

• Insulated with rugged high-dielectric Rubber/Vinyl Coating

• Pre-Filled with Oxide Inhibitor

• Single Side Entry Cable Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires

• Easy Re-Entry for Changes, Inspection or Troubleshooting

• Plugs Marked with Connector Max Wire Size for easy identification

• One wire per terminal

• Temperature Range of –49°F to 194°F (–45° to 90°C)

• ANSI C119.4 & cULus 486b Listed thru 750MCM

• Rated for use with 194°F(90°C Cables)

• 600 Volt

• Indoor Use Only

• Dimension Measurements = Inches

• Order Qty of 1 = 1 Piece

Set Screw Type:

4-14, 2-14 = Slotted Screw

1/0-14, 2/0-6, = 3/16” Allen Hex

3/0-6, 3/0-8, 3/0-10 = 1/4” Allen Hex

250-6, 350-6, 500-4, 600-250 = 5/16” Allen Hex

750-250 = 3/8” Allen Hex
